8 KW Single Phase On Grid Hybrid Inverter with WiFi Monitoring
Sale

8 KW Single Phase On Grid Hybrid Inverter with WiFi Monitoring

৳189,200৳215,000Save ৳25,800
In stock

Key features

  • Brand: Solis
  • Model : S6-EH1P8K-L-PLUS
  • On grid hybrid single phase inverter
  • 8 KW (8000 W) rated power output
  • 12800 W maximum PV input
  • Connectivity: WiFi / App (Solis Cloud)
  • 5 years replacement warranty
  • 100% genuineManufacturer warranty
  • Nationwide deliveryCash on delivery available
  • Expert supportSizing & installation help
Need a bulk quote or advice?Call our hotline 01740-303474

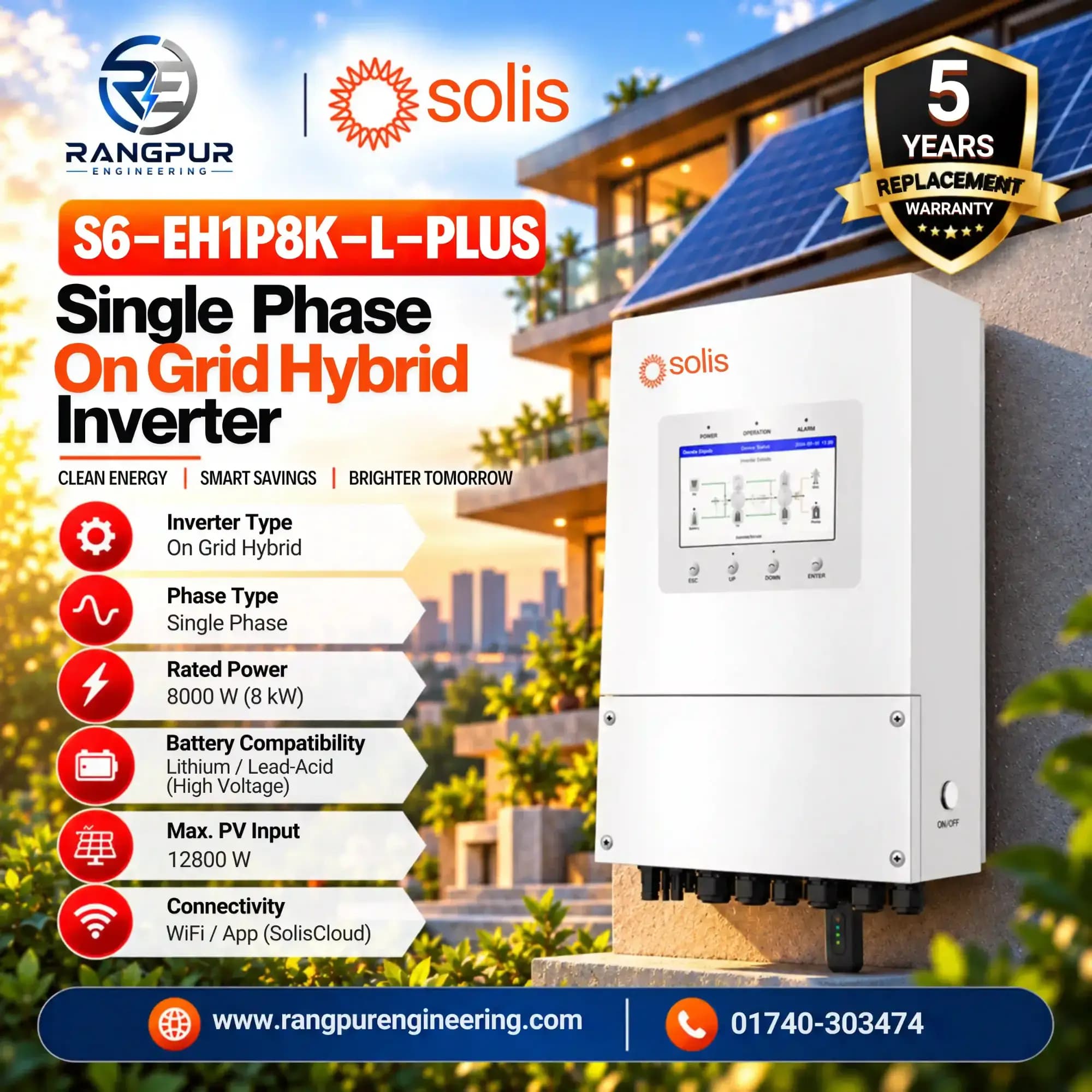

Stores excess solar energy and balances battery, panel and grid power to cut household electricity bills daily. The white wall-mounted metal casing has a front LCD screen, bottom cable ports and a side on/off switch. It suits single phase homes and small solar installations that monitor output through WiFi and the app.
ModelsS6-EH1P8K-L-PLUS
Input DC (PV side)
Recommended max. PV array size16 kW
Max. usable PV input power12.8 kW
Max. input voltage500 V
Rated voltage330 V
Start-up voltage90 V
MPPT voltage range90 - 435 V
Max. input current32 A / 32 A
Max. current per DC input16 A
Max. short circuit current40 A / 40 A
MPPT number / Max. input strings number2 / 4
Battery
Battery typeLi-ion / Lead-acid
Battery voltage range40 - 60 V
Max. charge / discharge current190 A
Number of battery port / Number of BMS port1 / 1
CommunicationCAN / RS485
Output AC (Grid side)
Rated output power8 kW
Max. apparent output power8 kVA
Rated grid voltageL/N/PE, 220 V / 230 V
Rated grid frequency50 Hz / 60 Hz
Rated grid output current36.4 A / 34.8 A
Power factor> 0.99 (0.8 leading - 0.8 lagging)
THDi< 3%
Input AC (Grid side)
Max. input power11 kW
Input voltage range187 - 253 V
Max. input current50 A
Output AC (Back-up)
Rated output power8 kW
Max. apparent output power2 times of rated power, 10 s
Back-up switch time ①< 10 ms
Rated output voltageL/N/PE, 220 V / 230 V
Rated frequency50 Hz / 60 Hz
Rated output current36.4 A / 34.8 A
Max. AC passthrough current50 A
THDv (@linear load)< 2%
Input AC (Generator side)
Max. input power8 kW
Rated input current36.4 A / 34.8 A
Rated input voltageL/N/PE, 220 V / 230 V
Rated input frequency50 Hz / 60 Hz
Efficiency
Max. efficiency96.2%
EU efficiency96.1%
BAT charged by PV / AC max. efficiency95.3% / 93.9%
Battery discharged efficiency93.8%
Protection
Surge protectionYes
Output over current protectionYes
Insulation resistance monitoringYes
Residual current detectionYes
Integrated PV switchYes
DC reverse-polarity protectionYes (PV only)
Protection class / Over voltage categoryI / II (PV and BAT), III (MAINS and BACKUP and GEN)
Integrated AFCI 2.0Optional
Anti-islanding protectionYes
General Data
Dimensions (W × H × D)335 × 560 × 253 mm
Weight23.5 kg
Inverter topologyNon-isolated (PV), Isolated (Battery)
Self-consumption< 40 W
Operating temperature range-25 ~ +60°C
Relative humidity0 - 100%
Ingress protectionIP66
Noise emission (typical)< 65 dB(A)
Cooling conceptIntelligent redundant fan-cooling
Max. operation altitude3000 m
Grid connection standardNRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, EN 50549-1, MEA, PEA, NBR 16149, NBR 16150, G98, G99, CEI 0-21, NTS 631 TypeA
Safety / EMC standardIEC/EN 62109-1/-2, EN 61000-6-2/-3
Features
PV connectionMC4 connector
Battery connectionTerminal Block
AC connectionTerminal Block
Display7.0" LCD display & Bluetooth + APP
Communication interfaceStandard: WIFI+LAN+Bluetooth, CAN-BMS, CAN-Parallel×2, RS485-Meter, RS485, DRM, DI, DO×2; Optional: 4G
