12kW Hybrid Solar Inverter 48V Battery LCD App Monitoring
Sale

12kW Hybrid Solar Inverter 48V Battery LCD App Monitoring

৳112,000৳140,000Save ৳28,000
In stock

Key features

  • Brand: LVTOPSUN
  • Model: LVTS-12KW-HYD
  • Rated Output Power: 12000 W
  • Maximum PV Input Power: 18000 W
  • Battery Voltage: 48 V
  • Battery Type: Lithium-ion / Lead-acid
  • Display & Monitoring: LCD, LED & App
  • Communication Interfaces: RS485 / USB / CAN / Wi-Fi
  • Warranty: 2 Years
  • Protection: DC surge protection, AC surge protection and AC short-circuit protection
  • 100% genuineManufacturer warranty
  • Nationwide deliveryCash on delivery available
  • Expert supportSizing & installation help
Need a bulk quote or advice?Call our hotline 01740-303474

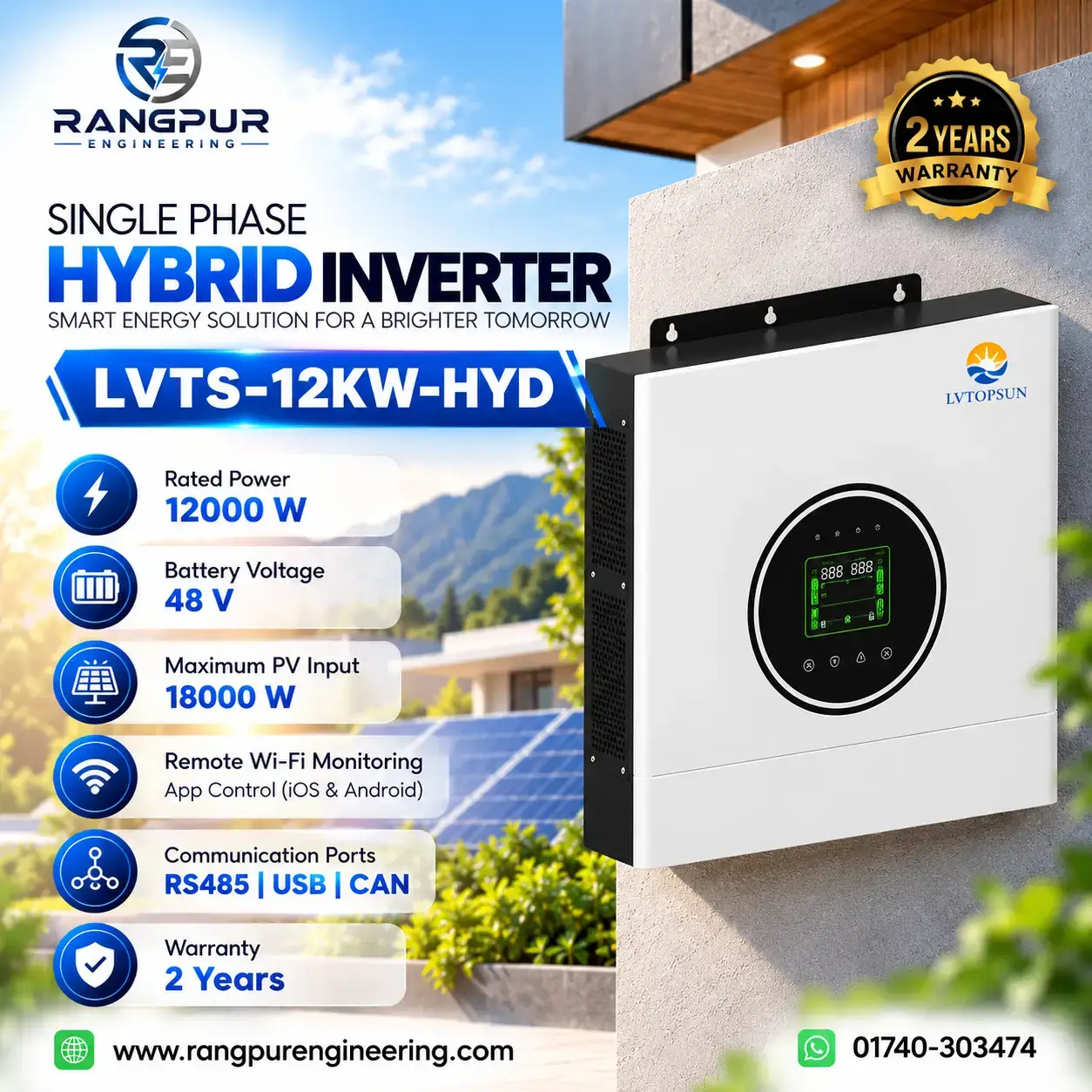

Manage your home or shop solar setup with a 12 kW single-phase hybrid inverter that pairs 18000 W of PV input with 48 V battery storage. It mounts to the wall in a white metal casing with a black vented side, a round LCD screen and LED indicators on the front panel. Suits residential rooftops, small offices and backup power.
ModelsLVTS-12KW-HYD
Solar Input Data
Max. PV Input Power18000W
Recommended Maximum PV Array Size24000W
Max. Input Voltage500 V
Start-up Voltage90 V
MPPT Voltage Range90V~450V
Max. Input Current per MPPT30A + 30A
Max. Short Circuit Current per MPPT44A + 44A
Number of MPPT AC Input Dato (Grid&Generator)2
Number of Strings per MPPT2
AC Input Data (Grid & Generator)
Nominal Input Voltoge230Vac, L/N/PE
Input Voltage Range90~280Vac (APL); 170~265Vac (UPS)
Maximum AC Current From Utility Grid70A
Maximum Apparent Power From Utility Grid12000VA
Maximum AC Current From Generator Bottery Dota60A
Maximum Apparent Power From Generator12000VA
AC Frequency Range50/60Hz Auto Sensing
Battery Data
Battery TypeLi-lon/Lead-acid
Nominol Bottery Voltoge48V
Battery Voltage Range40~60V
Maximum Charge Current250A
Max. Discharge Current280A
Max. Charge/Discharge Power12000W
Li-lon Battery ActivationYes
Li-lon Battery CommunicationCAN/RS485
Inverter Output Data
Nominal Output Power12000W
Peak Apparent AC Power24000VA
Nominal AC Voltoge230V
AC Frequency Range50/60Hz
Voltage WaveformPure Sine Wave
Transfer Time≤4ms
Max. Output Current52.2A
THDv (@linear load)<5%
Number of AC Output2
Efficiency
Peak efficiency94.0%
MPPT efficiency>99.9%
Protection Functions
PV Reverse Polarity ProtectionYes
AC Short Circuit ProtectionYes
Grid MonitoringYes
Over-current ProtectionYes
Over-voltage ProtectionYes
AC Surge ProtectionYes
DC Surge ProtectionYes
System Parameters
Parallel Capability9 Units
Communication InterfaceRS485 / USB / CAN / WiFi (Built-in) / Dry Contact
Cooling MethodFan Cooling
Ingress ProtectionIP21
Noise Emission≤50dB
Operating Temperature-10℃~60℃
Relative Humidity5%~95% (Non-condensing)
Altitude2000m
Dimension (W×H×D)625×400×120mm
Weight17.9kg
Characteristic
Number of AC Output2
DisplayLCD&APP
Communication InterfaceRS485/USB/CAN/Wi-Fi
Parallel Capability9
