4kW Hybrid Solar Inverter 24V Battery LCD App Monitoring
Sale

4kW Hybrid Solar Inverter 24V Battery LCD App Monitoring

৳36,800৳46,000Save ৳9,200
In stock

Key features

  • Brand: LVTOPSUN
  • Model: LVTS-4KW-HYD
  • Rated Output Power: 4000 W
  • Maximum PV Input Power: 4400 W
  • Battery Voltage: 24 V
  • Battery Type: Lithium-ion / Lead-acid
  • Display & Monitoring: LCD, LED & App
  • Communication Interfaces: RS485 / USB / CAN / Wi-Fi
  • Warranty: 2 Years
  • Protection: DC surge protection, AC surge protection and AC short-circuit protection
  • 100% genuineManufacturer warranty
  • Nationwide deliveryCash on delivery available
  • Expert supportSizing & installation help
Need a bulk quote or advice?Call our hotline 01740-303474

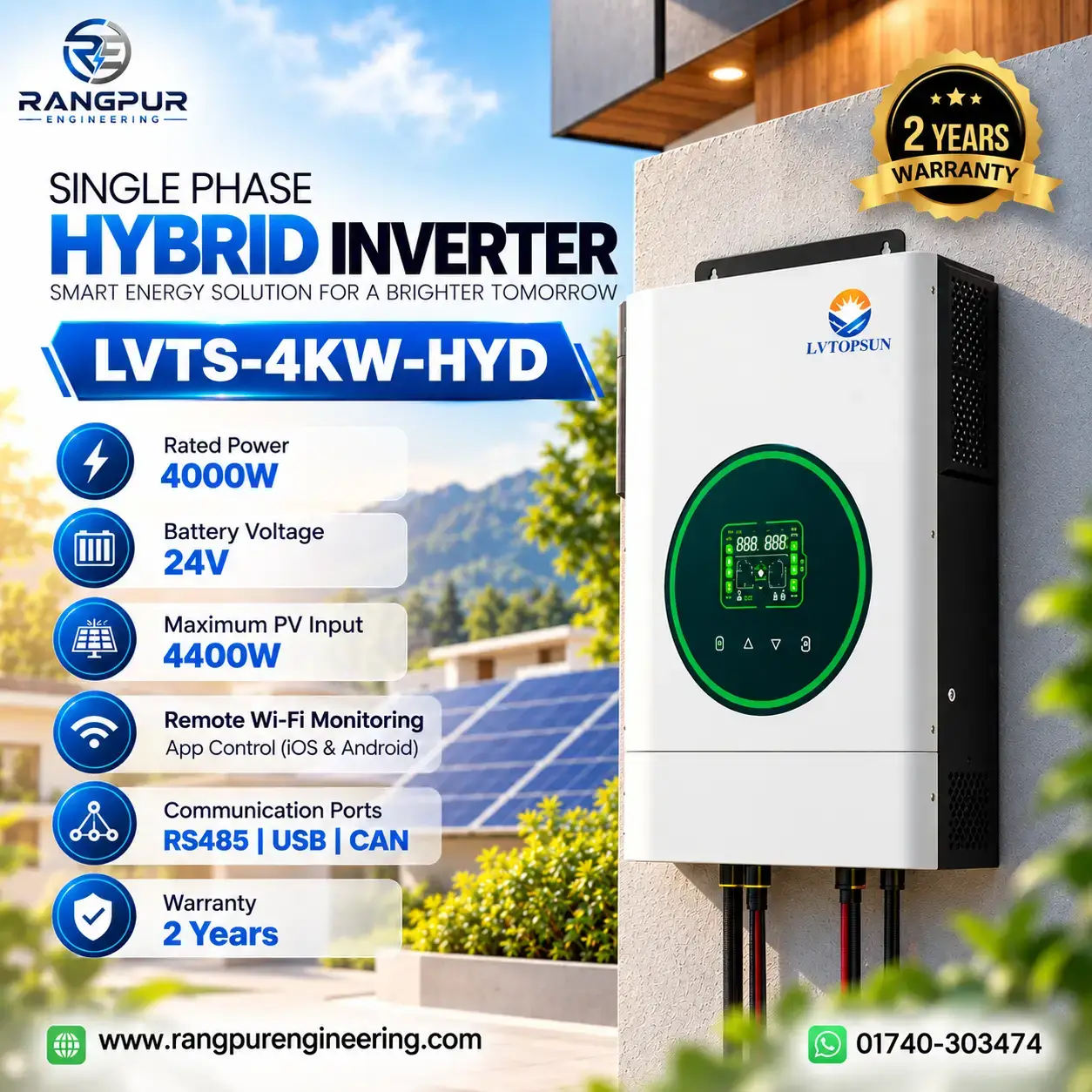

This hybrid inverter manages solar input and 24V battery storage to keep homes and small businesses powered, with a 4000W output and 4400W maximum PV input. Its white wall-mounted casing has a circular LCD with control buttons, side ventilation and bottom cable connections for a tidy installation. It suits residential solar systems, shops, small offices and backup power setups.
ModelsLVTS-4KW-HYD
Solar Input Data
Max. PV Input Power4400W
Max. Input Voltage500 V
Start-up Voltage120 V
MPPT Voltage Range90V~450V
Max. Input Current per MPPT18A
Max. Short Circuit Current per MPPT23A
Number of MPPT AC Input Dato (Grid&Generator)1
AC Input Data (Grid & Generator)
Nominal Input Voltoge230Vac, L/N/PE
Input Voltage Range90~280Vac (APL); 170~280Vac (UPS)
Max. Input Current35A
Nominal Input Power8050W
AC Frequency Range Bottery Dota40~65Hz
Battery Data
Battery TypeLi-lon/Lead-acid
Nominol Bottery Voltoge24V
Battery Voltage Range20~30V
Max. Discharge Current137A
Max. Charge/Discharge Power3300W
Li-lon Battery ActivationYes
Li-lon Battery CommunicationCAN/RS485
Max. Solar Charge Current120A
Max. AC Charge Current100A
Max. Charge Current (PV+AC) Inverter Output Data Nominal Output Power120A
Inverter Output Data
Nominal Output Power4000W
Peak Apparent AC Power8000VA
Nominal AC Voltoge230V
Nominal Grid Frequency50/60Hz (Auto Sensing)
Voltage WaveformPure Sine Wave
Transfer Time10ms
Max. Output Current18A
Overload Protection305@102%-110% load; 10s@110%-130% load; 5s@130%-200% load
THDv (@linear load)<3%
Efficiency
Peak efficiency94.0%
MPPT efficiency>99.9%
Protect
DC Surge ProtectionYes
AC Surge ProtectionYes
AC Short Circuit ProtectionYes
System Parameters
Dimension (W*H*D)333*505*120mm
Weight10.6kg
Relative Humidity5%~95% (Non-condensing)
Operating Temperature Range(-10°C-50°C)
Noise Emission<50dB
Altitude4000m
Cooling MethodFan Cooling
Ingress ProtectionIP20
Characteristic
Number of AC Output2
DisplayLCD&LED&APP
Communication InterfaceRS485/USB/CAN/Wi-Fi
Parallel Capability9
