25kW Three Phase On Grid Solar Inverter with Wi-Fi Monitoring

Sale

25kW Three Phase On Grid Solar Inverter with Wi-Fi Monitoring

Name: 25kW Three Phase On Grid Solar Inverter with Wi-Fi Monitoring
Brand: Solis
SKU: 103
Price: 207400.00 BDT
Availability: InStock

৳207,400~~৳244,000~~Save ৳36,600

In stock

Key features

Brand : Solis
Model : S5-GR25K
Inverter Type : Three phase On Grid Inverter
Rated Power: 25 KW (25000 W)
Maximum PV Input: 37500 W
Connectivity: Wi-Fi / App (Solis Cloud)
5 Years replacement warranty

100% genuineManufacturer warranty
Nationwide deliveryCash on delivery available
Expert supportSizing & installation help

Need a bulk quote or advice?Call our hotline 01740-303474

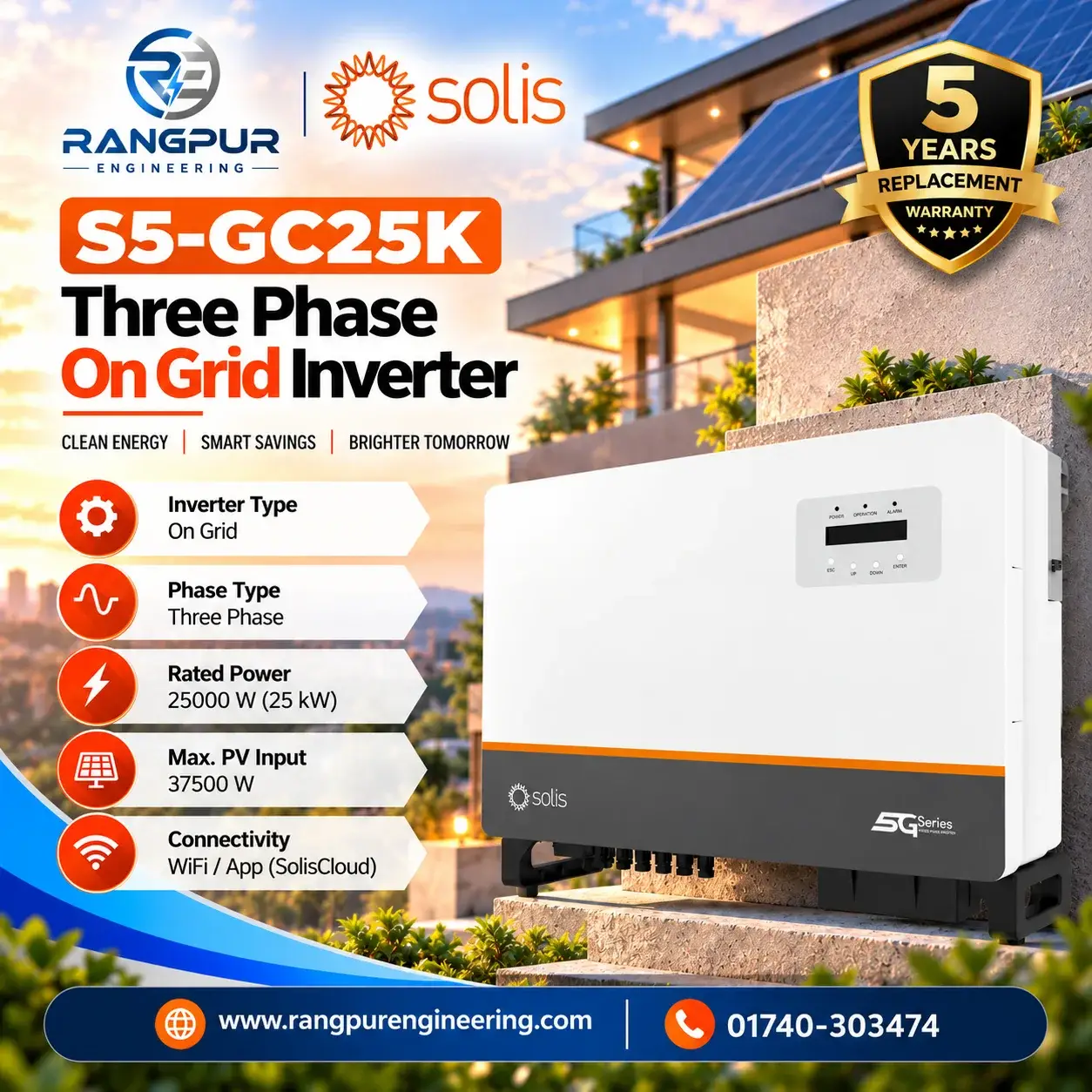

Turns solar panel DC output into stable three-phase grid power for homes and businesses, helping cut reliance on the grid. Its white wall-mounted casing has an orange accent strip and a front display panel. It suits rooftop arrays and small commercial sites that need 25 kW output with app-based monitoring.

Models	S5-GC25K
Input DC
Recommended max. PV power	37.5 kW
Max. input voltage	1100 V
Rated voltage	600 V
Start-up voltage	180 V
MPPT voltage range	200 - 1000 V
Max. input current	32 A / 32 A / 32 A
Max. short circuit current	40 A / 40 A / 40 A
MPPT number / Max. input strings number	3 / 6
Output AC
Rated output power	25 kW
Max. apparent output power	27.5 kVA
Max. output power	27.5 kW
Rated grid voltage	3/N/PE, 220 V / 380 V; 230 V / 400 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	38.0 A / 36.1 A
Max. output current	41.8 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Efficiency
Max. efficiency	98.5%
EU efficiency	98.1%
Protection
DC reverse-polarity protection	Yes
Short circuit protection	Yes
Output over current protection	Yes
Surge protection	DC Type II / AC Type II
Grid monitoring	Yes
Anti-islanding protection	Yes
Temperature protection	Yes
Strings monitoring	Yes
I/V Curve scanning	Yes
Multi peak scan	Yes
Integrated AFCI 2.0	Optional
Integrated PID recovery	Optional
Integrated DC switch	Yes
General Data
Dimensions (W × H × D)	647 × 629 × 252 mm
Weight	38.2 kg
Topology	Transformerless
Self-consumption (night)	< 1 W
Operating ambient temperature range	-25 ~ +60°C
Relative humidity	0 - 100%
Ingress protection	IP66
Noise emission (typical)	≤ 60 dB(A)
Cooling concept	Intelligent fan-cooling
Max. operation altitude	4000 m
Grid connection standard	G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530
Safety / EMC standard	IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Features
DC connection	MC4 connector
AC connection	OT terminal
Display	LCD
Communication	RS485, Optional: Wi-Fi, GPRS
