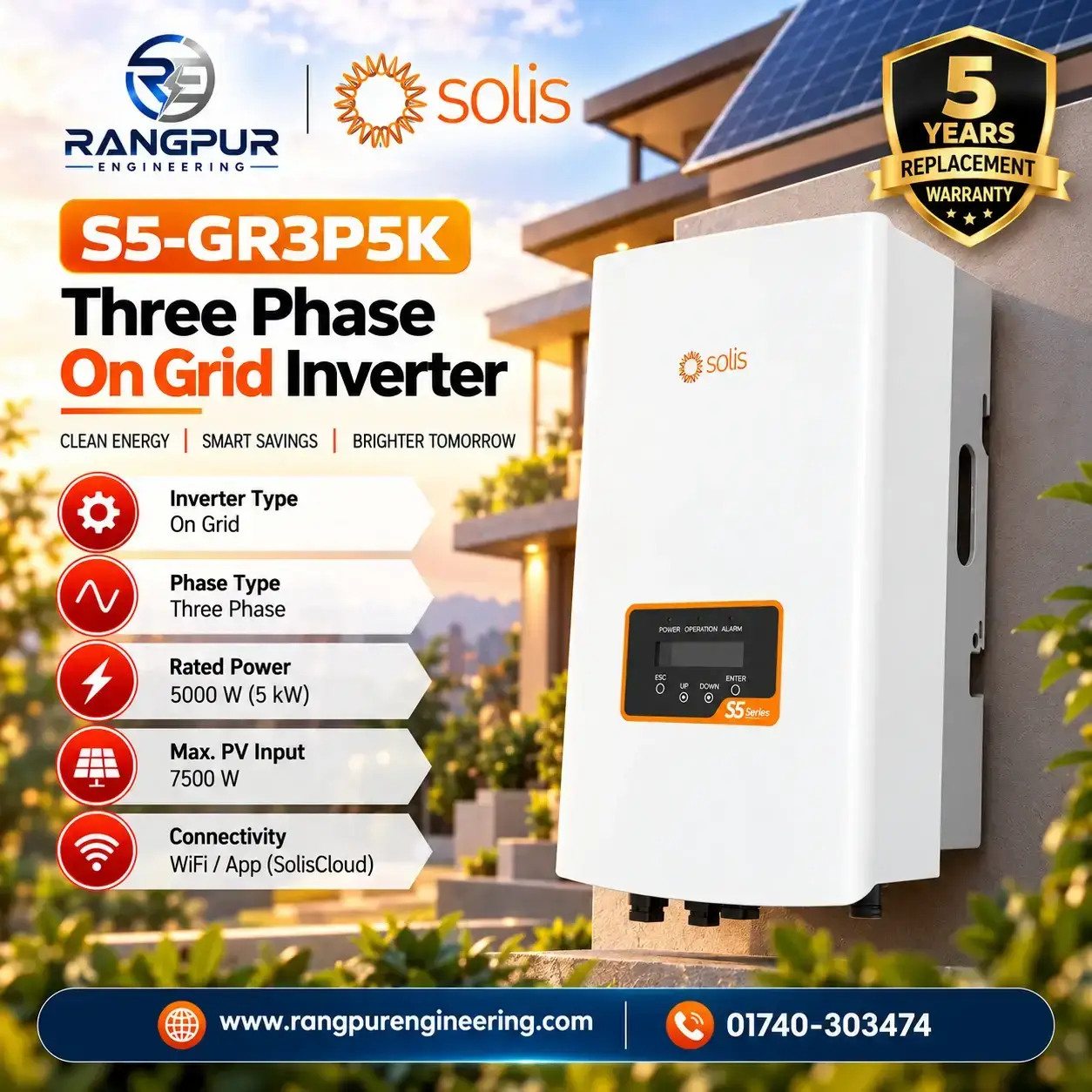

5kW Three Phase On Grid Inverter Compact 16A String Input

Sale

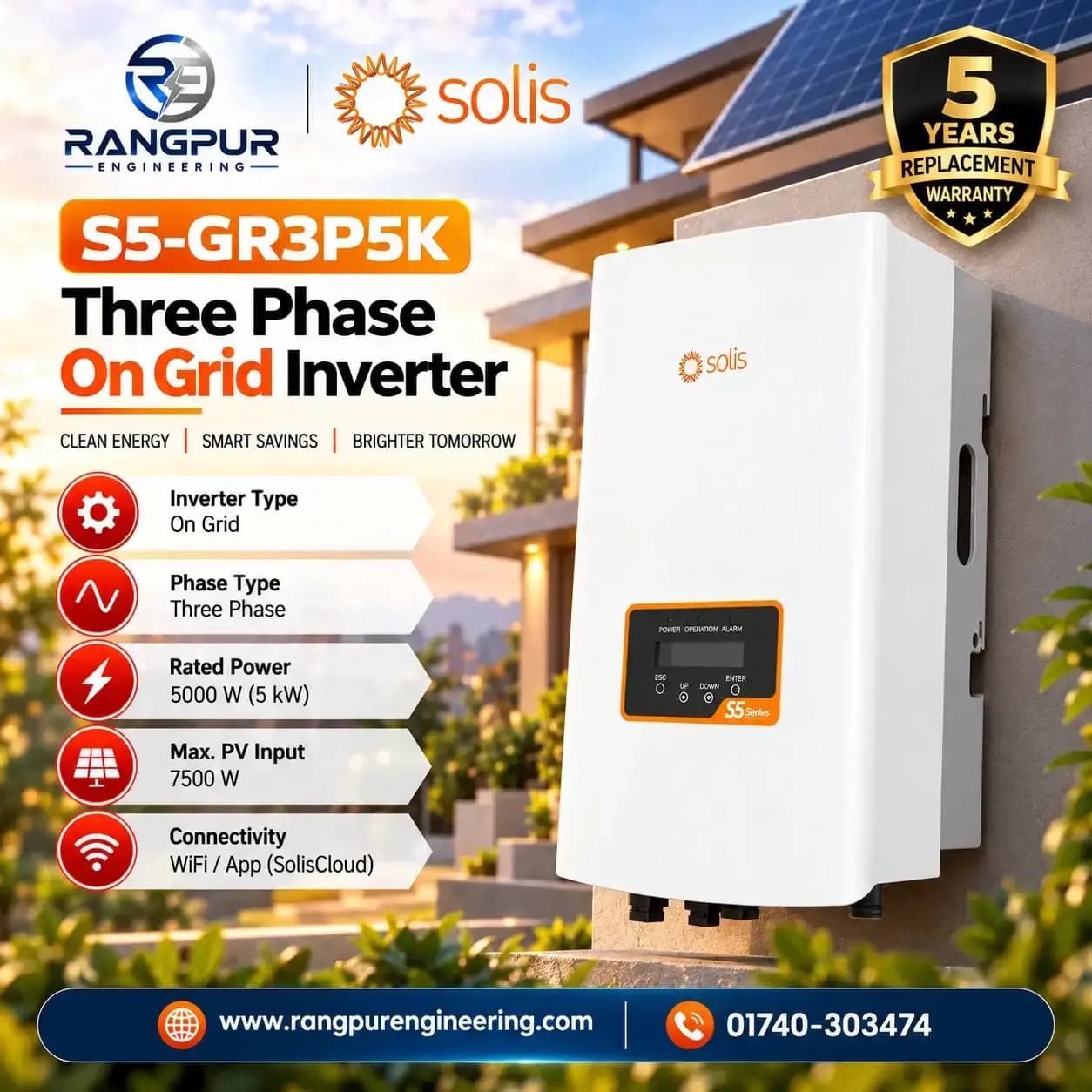

5 KW Three Phase On Grid Inverter with Wi-Fi App Monitoring

Name: 5 KW Three Phase On Grid Inverter with Wi-Fi App Monitoring
Brand: Solis
SKU: 93
Price: 103700.00 BDT
Availability: InStock

৳103,700~~৳122,000~~Save ৳18,300

In stock

Key features

Brand : Solis
Model : S5-GR3P5K
Three phase On Grid Inverter
5 kW rated power
7500 W PV input
Connectivity: Wi-Fi / App (Solis Cloud)
5 Years replacement warranty

100% genuineManufacturer warranty
Nationwide deliveryCash on delivery available
Expert supportSizing & installation help

Need a bulk quote or advice?Call our hotline 01740-303474

Convert solar energy into three-phase grid power for residential PV systems, with 16A per string supporting high-efficiency and bifacial modules. Its compact white wall-mounted housing has a front display panel and a fanless design that keeps operation quiet. Suitable for homeowners and installers planning a quiet, space-saving rooftop solar setup.

Models	S5-GR3P5K
Input DC
Recommended max. PV power	7.5 kW
Max. input voltage	1100 V
Rated voltage	600 V
Start-up voltage	180 V
MPPT voltage range	160 - 1000 V
Max. input current	16 A / 16 A
Max. short circuit current	20 A / 20 A
MPPT number / Max. input strings number	2 / 2
Output AC
Rated output power	5 kW
Max. apparent output power	5.5 kVA
Max. output power	5.5 kW
Rated grid voltage	3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	7.6 A / 7.2 A
Max. output current	7.9 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 2%
Efficiency
Max. efficiency	98.5%
EU efficiency	97.9%
Protection
DC reverse-polarity protection	Yes
Short circuit protection	Yes
Output over current protection	Yes
Surge protection	Yes
Grid monitoring	Yes
Anti-islanding protection	Yes
Temperature protection	Yes
Multi peak scan	Yes
Integrated AFCI 2.0	Optional
Integrated DC switch	Yes
General Data
Dimensions (W × H × D)	310 × 563 × 219 mm
Weight	16.9 kg
Topology	Transformerless
Self-consumption (night)	< 1 W
Operating ambient temperature range	-25 ~ +60°C
Relative humidity	0 - 100%
Ingress protection	IP66
Noise emission (typical)	< 30 dB(A)
Cooling concept	Natural cooling
Max. operation altitude	4000 m
Grid connection standard	G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530
Safety / EMC standard	IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Features
DC connection	MC4 connector
AC connection	Quick connection plug
Display	LCD
Communication	RS485, Optional: Wi-Fi, GPRS
