3kW Single Phase On Grid Inverter S6-GR1P3K-M 16A Input

Sale

3 KW Single Phase On Grid Inverter with Wi-Fi App Monitoring

Name: 3 KW Single Phase On Grid Inverter with Wi-Fi App Monitoring
Brand: Solis
SKU: 92
Price: 66300.00 BDT
Availability: InStock

৳66,300~~৳78,000~~Save ৳11,700

In stock

Key features

Brand : Solis
Model : S6-GR1P3K-M
3 kW single phase on-grid inverter
4500 W max PV input
Wi-Fi app monitoring
5-year replacement warranty

100% genuineManufacturer warranty
Nationwide deliveryCash on delivery available
Expert supportSizing & installation help

Need a bulk quote or advice?Call our hotline 01740-303474

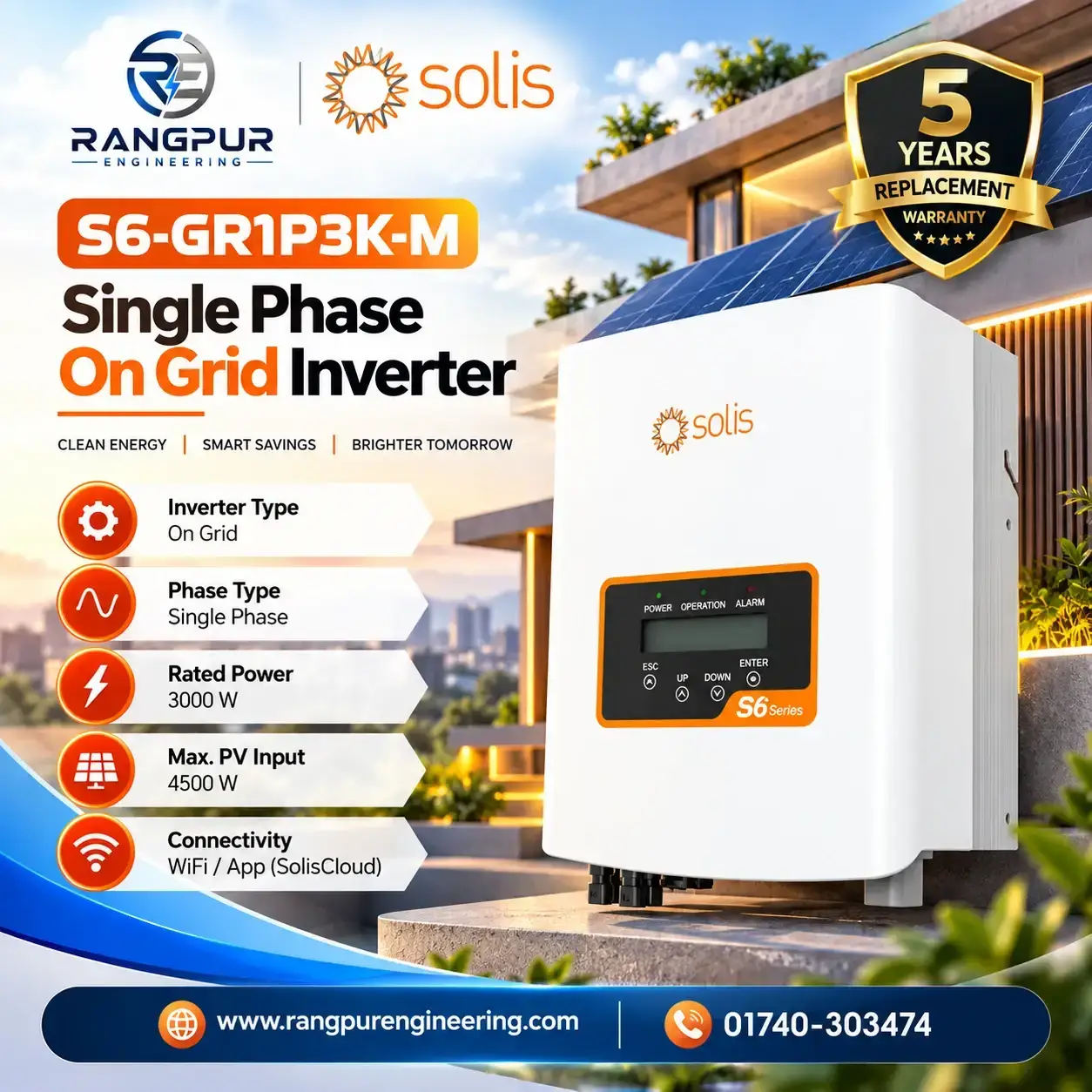

Powers residential solar arrays by converting PV output into usable single-phase grid power. Its compact white casing, front LCD panel, and orange-accented controls keep setup and monitoring straightforward. Ideal for homeowners adding a small rooftop home solar system with high-current or bifacial modules.

Models	S6-GR1P3K-M
Input DC
Recommended max. PV power	4.5 kW
Max. input voltage	550 V
Rated voltage	330 V
Start-up voltage	90 V
MPPT voltage range	80 - 500 V
Max. input current	19 A
Max. short circuit current	24 A
MPPT number / Max. input strings number	1 / 1
Output AC
Rated output power	3 kW
Max. apparent output power	3.3 kVA
Max. output power	3.3 kW
Rated grid voltage	1/N/PE, 220 V / 230 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	13.6 A / 13 A
Max. output current	15.7 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Efficiency
Max. efficiency	97.3%
EU efficiency	96.8%
Protection
DC reverse-polarity protection	Yes
Short circuit protection	Yes
Output over current protection	Yes
Surge protection	Yes
Grid monitoring	Yes
Anti-islanding protection	Yes
Temperature protection	Yes
Multi peak scan	Yes
Integrated AFCI 2.0	Optional
Integrated DC switch	Yes
General Data
Dimensions (W × H × D)	310 × 373 × 160 mm
Weight	8 kg
Topology	Transformerless
Self-consumption (night)	< 1 W
Operating ambient temperature range	-25 ~ +60°C
Relative humidity	0 - 100%
Ingress protection	IP66
Noise emission (typical)	< 20 dB(A)
Cooling concept	Natural cooling
Max. operation altitude	4000 m
Grid connection standard	G98 or G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA
Safety / EMC standard	IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Features
DC connection	MC4 connector
AC connection	Quick connection plug
Display	LCD
Communication	RS485, Optional: Wi-Fi, GPRS
