30 KW Three Phase On Grid Hybrid Inverter with WiFi App Monitoring

Sale

30 KW Three Phase On Grid Hybrid Inverter with WiFi App Monitoring

Name: 30 KW Three Phase On Grid Hybrid Inverter with WiFi App Monitoring
Brand: Solis
SKU: 88
Price: 545600.00 BDT
Availability: InStock

৳545,600~~৳620,000~~Save ৳74,400

In stock

Key features

Brand : Solis
Model : S6-EH3P30K-H
Three phase On-grid hybrid inverter
Rated Power: 30 KW (30000 W)
Maximum PV Input : 60000 W
Connectivity: WiFi / App (Solis Cloud)
5 Years replacement warranty

100% genuineManufacturer warranty
Nationwide deliveryCash on delivery available
Expert supportSizing & installation help

Need a bulk quote or advice?Call our hotline 01740-303474

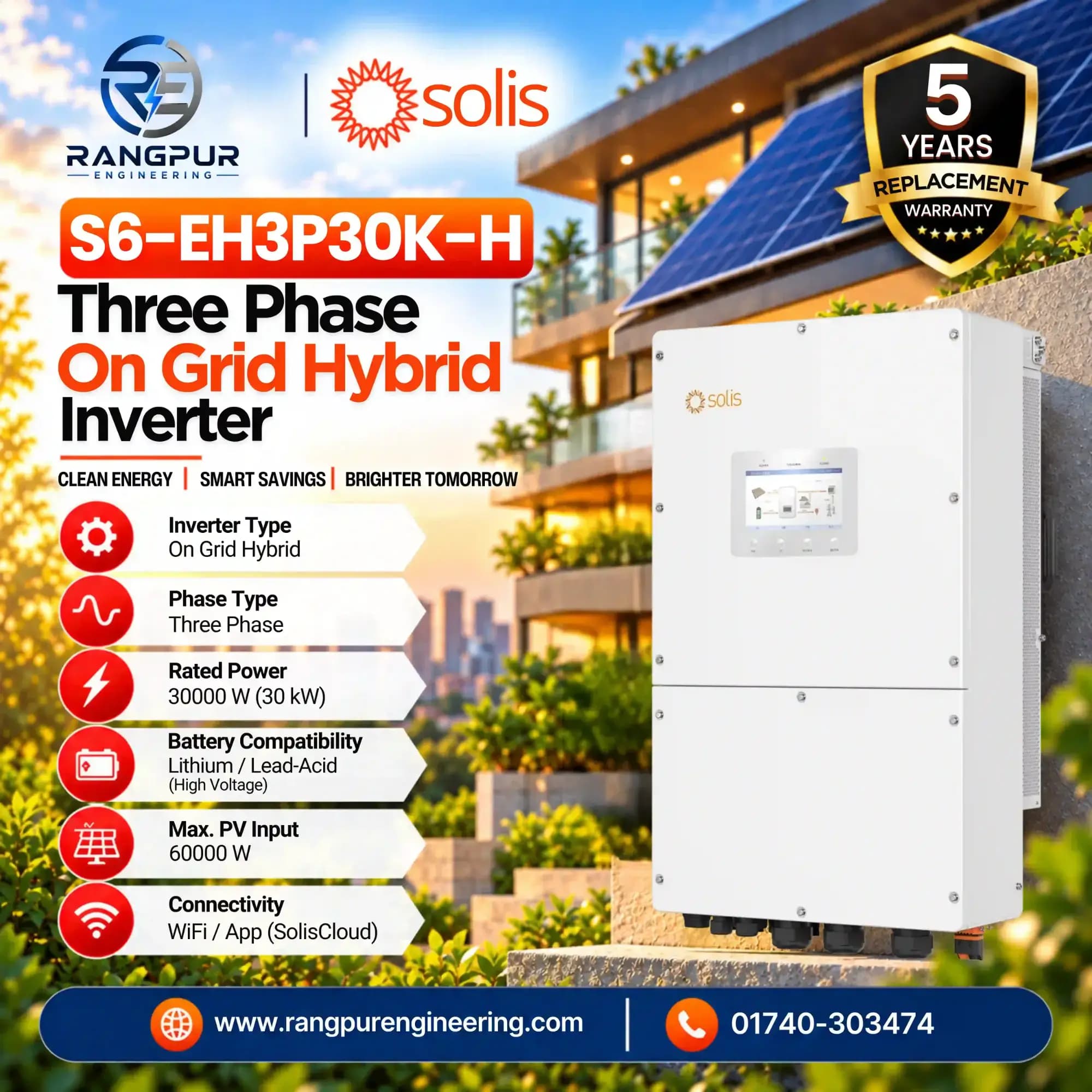

Store your own solar power and keep a three-phase property running on grid, battery, or generator supply. The white wall-mounted unit has a metal casing, a front LCD screen, and bottom cable entries for tidy wiring. It suits large homes and small businesses with high solar output, mixed battery banks, and unbalanced three-phase loads.

Models	S6-EH3P30K-H
Input DC (PV side)
Recommended max. PV array size	60 kW
Max. usable PV input power	60 kW
Max. input voltage	1000 V
Rated voltage	600 V
Start-up voltage	180 V
MPPT voltage range	150 - 850 V
Max. input current	40 A / 40 A / 40 A
Max. short circuit current	60 A / 60 A / 60 A
MPPT number / Max. input strings number	3 / 6
Battery
Battery type	Li-ion
Battery voltage range	150 - 800 V
Max. charge / discharge power	33 kW
Max. charge / discharge current	70 A × 2
Number of battery ports	2
Max. charge / discharge power of each input	33 kW
Communication (battery)	CAN / RS485
Output AC (Grid side)
Rated output power (grid)	30 kW
Max. apparent output power (grid)	30 kVA
Rated grid voltage	3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	45.6 A / 43.3 A
Max. output current (grid)	45.6 A / 43.3 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
Input AC (Grid side)
Max. AC passthrough current	91.2 A / 86.6 A
Rated input voltage	3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated input frequency	50 Hz / 60 Hz
Input Generator
Max. input power (generator)	30 kW
Rated input current (generator)	45.6 A / 43.3 A
Rated input voltage	3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated input frequency	50 Hz / 60 Hz
Output AC (Back-up)
Rated output power (backup)	30 kW
Max. apparent output power (backup)	1.6 times of rated power, 2 s
Back-up switch time	< 10 ms
Rated output voltage (backup)	3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated frequency (backup)	50 Hz / 60 Hz
Rated output current (backup)	45.6 A / 43.3 A
THDv (@linear load)	< 2%
Efficiency
Max. efficiency	97.8%
EU efficiency	97.4%
BAT charged by PV max. efficiency	98.5%
BAT charged / discharged to AC max. efficiency	97.5%
Protection
Anti-islanding protection	Yes
Output over current protection	Yes
Short circuit protection	Yes
Integrated DC switch	Yes
DC reverse-polarity protection	Yes
Surge protection	DC Type II / AC Type II
Integrated AFCI 2.0	Optional
General Data
Dimensions (W × H × D)	530 × 880 × 290 mm
Weight	73 kg
Topology	Transformerless
Self-consumption (night)	< 35 W
Operating ambient temperature range	-25 ~ +60°C
Relative humidity	0 - 100%
Ingress protection	IP66
Cooling concept	Intelligent fan-cooling
Max. operation altitude	4000 m
Grid connection standard	G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1/EN 50549-10, VDE 0126/UTE C 15/VFR:2019, NTS 631/RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, PORTARIA Nº 140, DE 21 DE MARÇO DE 2022
Safety / EMC standard	IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011
Features
PV connection	MC4 Quick connection plug
Battery connection	Terminal connector
AC connection	Terminal Block
Display	7.0" LCD display & Bluetooth + APP
Communication	CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN
