Key features

  • Brand : Solis
  • Model : S5-GR3P20K
  • Three phase on grid inverter
  • 20 kW rated power output
  • 30 kW maximum PV input
  • Wi-Fi app monitoring
  • Five year replacement warranty
  • 100% genuineManufacturer warranty
  • Nationwide deliveryCash on delivery available
  • Expert supportSizing & installation help
Need a bulk quote or advice?Call our hotline 01740-303474

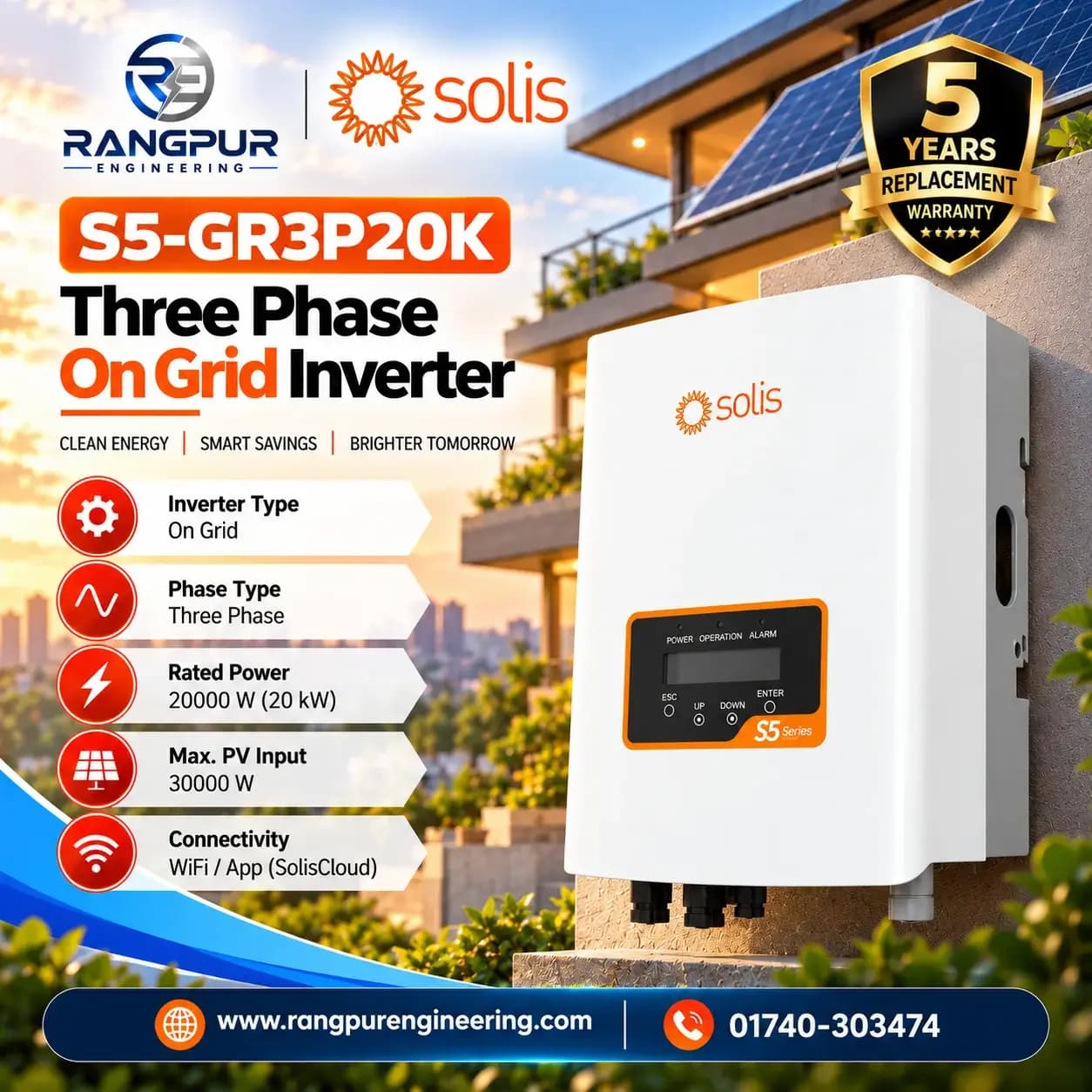

Turns rooftop solar into three-phase grid power for homes and commercial sites, with dual MPPT inputs keeping output steady. The white wall-mounted housing has a front display panel with status lights and control buttons for on-site checks. Suits installers fitting residential, small industrial and commercial PV stations up to 20 kW.
ModelsS5-GR3P20K
Input DC
Recommended max. PV power30 kW
Max. input voltage1100 V
Rated voltage600 V
Start-up voltage180 V
MPPT voltage range160 - 1000 V
Max. input current32 A / 32 A
Max. short circuit current40 A / 40 A
MPPT number / Max. input strings number2 / 4
Output AC
Rated output power20 kW
Max. apparent output power22 kVA
Max. output power22 kW
Rated grid voltage3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated grid frequency50 Hz / 60 Hz
Rated grid output current30.4 A / 28.9 A
Max. output current31.8 A
Power factor> 0.99 (0.8 leading - 0.8 lagging)
THDi< 2%
Efficiency
Max. efficiency98.7%
EU efficiency98.1%
Protection
DC reverse-polarity protectionYes
Short circuit protectionYes
Output over current protectionYes
Surge protectionYes
Grid monitoringYes
Anti-islanding protectionYes
Temperature protectionYes
Multi peak scanYes
Integrated AFCI 2.0Optional
Integrated DC switchYes
General Data
Dimensions (W × H × D)310 × 563 × 219 mm
Weight20.8 kg
TopologyTransformerless
Self-consumption (night)< 1 W
Operating ambient temperature range-25 ~ +60°C
Relative humidity0 - 100%
Ingress protectionIP66
Noise emission (typical)< 60 dB(A)
Cooling conceptIntelligent fan-cooling
Max. operation altitude4000 m
Grid connection standardG99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530
Safety / EMC standardIEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Features
DC connectionMC4 connector
AC connectionQuick connection plug
DisplayLCD
CommunicationRS485, Optional: Wi-Fi, GPRS
