125 KW Three Phase On Grid Hybrid Inverter with Wi-Fi App Monitoring
Sale

125 KW Three Phase On Grid Hybrid Inverter with Wi-Fi App Monitoring

৳1,390,400৳1,580,000Save ৳189,600
In stock

Key features

  • Brand : Solis
  • Three phase hybrid inverter
  • 125 kW rated power
  • 250 kW PV input
  • High-voltage battery support
  • Wi-Fi app monitoring
  • 5 Years replacement warranty
  • 100% genuineManufacturer warranty
  • Nationwide deliveryCash on delivery available
  • Expert supportSizing & installation help
Need a bulk quote or advice?Call our hotline 01740-303474

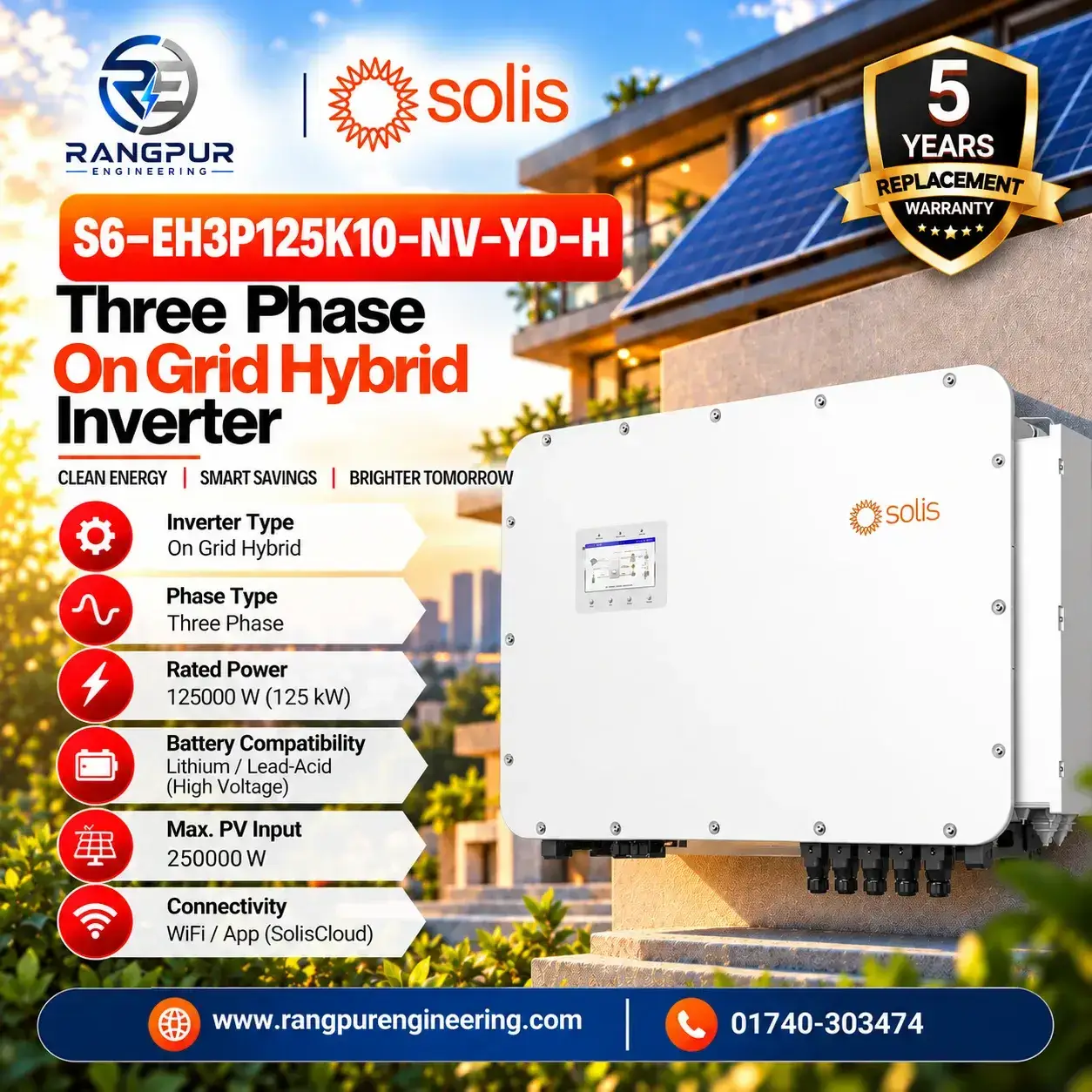

Delivers high-voltage three-phase energy storage and backup power for commercial sites, with 125 kW rated output and up to 250 kW PV input. The white wall-mounted casing has a front display panel and bottom cable glands for tidy connections. Suits commercial on-grid or off-grid installations needing parallel operation and peak shaving.
ModelsS6-EH3P125K10-NV-YD-H
Input DC (PV side)
Recommended max. PV array size250 kW
Max. usable PV input power250 kW
Max. input voltage1000 V
Rated voltage600 V
Start-up voltage180 V
MPPT voltage range150 - 950 V
Max. input current10 × 42 A
Max. current per DC input42 A
Max. short circuit current10 × 60 A
MPPT number / Max. input strings number10 / 20
Battery
Battery typeLi-ion
Battery voltage range300 - 950 V
Max. charge / discharge current100 A × 2 / 100 A × 2
Number of battery port / Number of BMS port2
Max. charge / discharge current of each port100 A
Communication (battery)CAN
Output AC (Grid side)
Rated output power (grid)125 kW
Max. apparent output power (grid)125 kVA
Rated grid voltage3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated grid frequency50 Hz / 60 Hz
Rated grid output current189.9 A / 180.4 A
Power factor> 0.99 (0.8 leading - 0.8 lagging)
THDi< 3%
Input AC (Grid side)
Max. input power (grid)164.5 kW / 173.2 kW
Input voltage range304 - 460 V
Max. input current (grid)250 A
Output AC (Back-up)
Rated output power (backup)125 kW
Max. apparent output power (backup)75–100K: 1.6× rated power for 10 s; 2× for 200 ms. 125K: 1.4× for 10 s; 1.6× for 200 ms
Back-up switch time< 10 ms
Rated output voltage (backup)3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated frequency (backup)50 Hz / 60 Hz
Rated output current (backup)189.9 A / 180.4 A
Max. AC passthrough current189.9 A / 180.4 A
THDv (@linear load)< 3%
Input AC (Generator side)
Max. input power (generator)125 kW
Rated input current (generator)189.9 A / 180.4 A
Rated input voltage3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated input frequency50 Hz / 60 Hz
Efficiency
Max. efficiency97.5%
EU efficiency97.2%
BAT charged by PV / AC max. efficiency98.2% / 97.0%
Battery discharged efficiency97.0%
Protection
Surge protectionDC Type II / AC Type II
Output over current protectionYes
Insulation resistance monitoringYes
Residual current detectionYes
Integrated PV switchYes
DC reverse-polarity protectionYes
Protection class / Over voltage categoryI / DC II, AC III
Integrated AFCI 2.0Optional (Brazil: Yes)
Anti-islanding protectionYes
General Data
Max. power per phase (grid & back-up)33% rated power
Dimensions (W × H × D)1174 × 814 × 400 mm
Weight170 kg
Inverter topologyNon-isolated
Self-consumption< 45 W
Operating temperature range-25 ~ +60°C
Relative humidity0 - 100%
Ingress protectionIP66
Cooling conceptIntelligent redundant fan-cooling
Max. operation altitude3000 m
Grid connection standardG99, VDE-AR-N 4105/VDE V 0124, EN 50549-1&2/EN 50549-10, VDE 0126/UTE C 15/VFR:2019, NTS 631/UNE 217001, CEI 0-21, C10/11, NRS 097-2-1, TOR, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, PORTARIA Nº 140, PORTARIA Nº 515
Safety / EMC standardIEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011
Features
PV connectionMC4 connector
Battery connectionTerminal connector
AC connectionTerminal block
Display7.0" LCD display & Bluetooth + APP
Communication interfaceStandard: WIFI+LAN+Bluetooth, CAN-BMS×2, CAN-Parallel×2, LAN, RS485-Meter, RS485, DRM, DI×5, DO×4; Optional: 4G
