10 KW Three Phase On Grid Inverter with Wi-Fi App Monitoring
Sale

10 KW Three Phase On Grid Inverter with Wi-Fi App Monitoring

৳130,050৳153,000Save ৳22,950
In stock

Key features

  • Brand: Solis
  • Model : S5-GR3P10K
  • Three phase on grid inverter
  • 10 kW rated power
  • 15 kW max PV input
  • WiFi app monitoring
  • 5 year replacement warranty
  • 100% genuineManufacturer warranty
  • Nationwide deliveryCash on delivery available
  • Expert supportSizing & installation help
Need a bulk quote or advice?Call our hotline 01740-303474

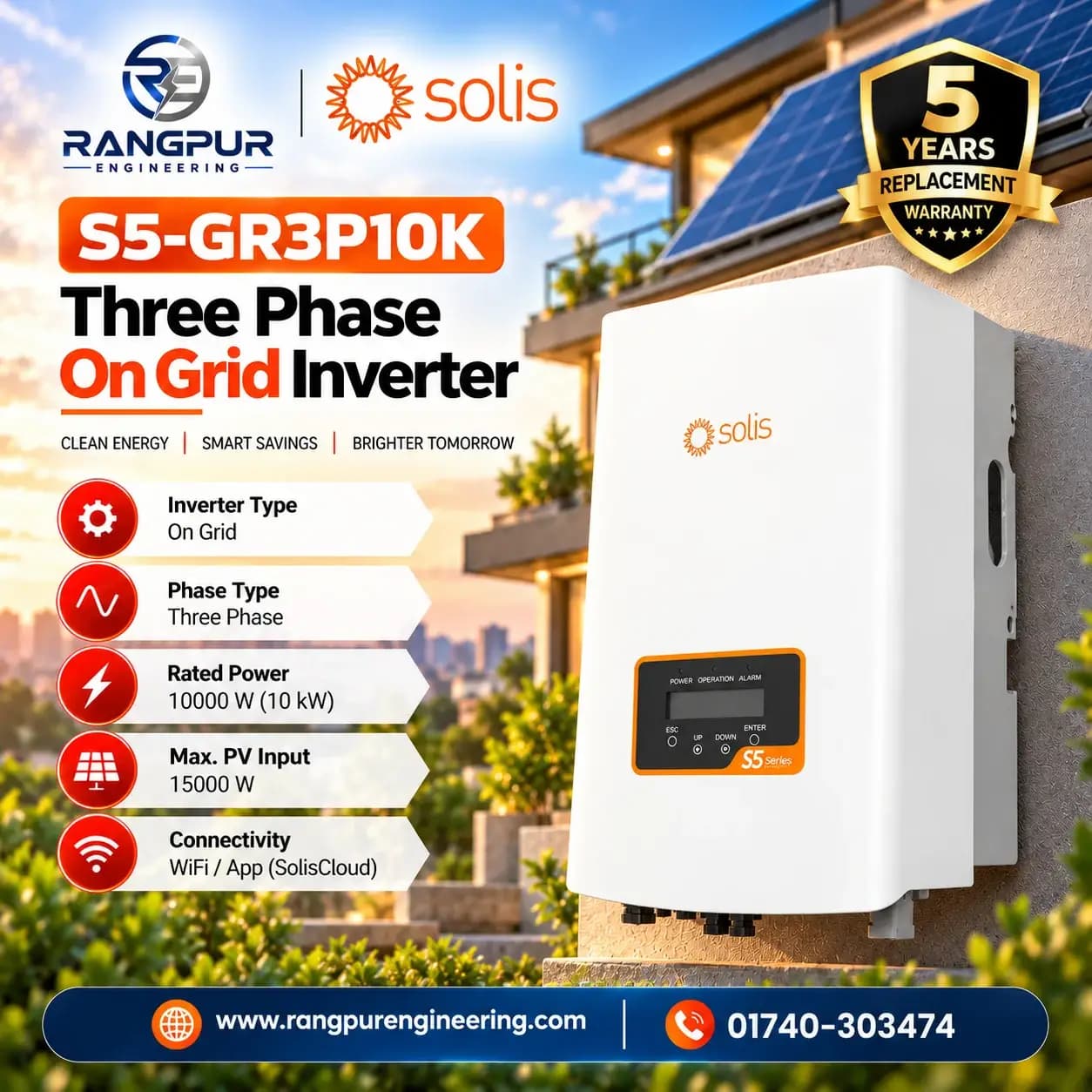

Feed solar straight into the grid with a 10 kW three-phase on-grid inverter for daily savings. The white wall-mounted housing carries a front LCD with power, operation and alarm indicators and cable ports at the base. Ideal for residential rooftops and small commercial or industrial arrays needing compact size and app monitoring.
ModelsS5-GR3P10K
Input DC
Recommended max. PV power15 kW
Max. input voltage1100 V
Rated voltage600 V
Start-up voltage180 V
MPPT voltage range160 - 1000 V
Max. input current16 A / 16 A
Max. short circuit current20 A / 20 A
MPPT number / Max. input strings number2 / 2
Output AC
Rated output power10 kW
Max. apparent output power11 kVA
Max. output power11 kW
Rated grid voltage3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated grid frequency50 Hz / 60 Hz
Rated grid output current15.2 A / 14.4 A
Max. output current15.9 A
Power factor> 0.99 (0.8 leading - 0.8 lagging)
THDi< 2%
Efficiency
Max. efficiency98.6%
EU efficiency98.0%
Protection
DC reverse-polarity protectionYes
Short circuit protectionYes
Output over current protectionYes
Surge protectionYes
Grid monitoringYes
Anti-islanding protectionYes
Temperature protectionYes
Multi peak scanYes
Integrated AFCI 2.0Optional
Integrated DC switchYes
General Data
Dimensions (W × H × D)310 × 563 × 219 mm
Weight17.9 kg
TopologyTransformerless
Self-consumption (night)< 1 W
Operating ambient temperature range-25 ~ +60°C
Relative humidity0 - 100%
Ingress protectionIP66
Noise emission (typical)< 60 dB(A)
Cooling conceptIntelligent fan-cooling
Max. operation altitude4000 m
Grid connection standardG99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530
Safety / EMC standardIEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Features
DC connectionMC4 connector
AC connectionQuick connection plug
DisplayLCD
CommunicationRS485, Optional: Wi-Fi, GPRS
