10 KW Three Phase On Grid Hybrid Inverter with WiFi App Monitoring
Sale

10 KW Three Phase On Grid Hybrid Inverter with WiFi App Monitoring

৳255,200৳290,000Save ৳34,800
In stock

Key features

  • Brand: Solis
  • Model: S6-EH3P10K02-NV-YD-L
  • Inverter type: on grid hybrid inverter
  • Rated power: 10 kW (10000 W)
  • Maximum PV input: 16000 W
  • WiFi / App (Solis Cloud) connectivity
  • 5 Years replacement warranty
  • 100% genuineManufacturer warranty
  • Nationwide deliveryCash on delivery available
  • Expert supportSizing & installation help
Need a bulk quote or advice?Call our hotline 01740-303474

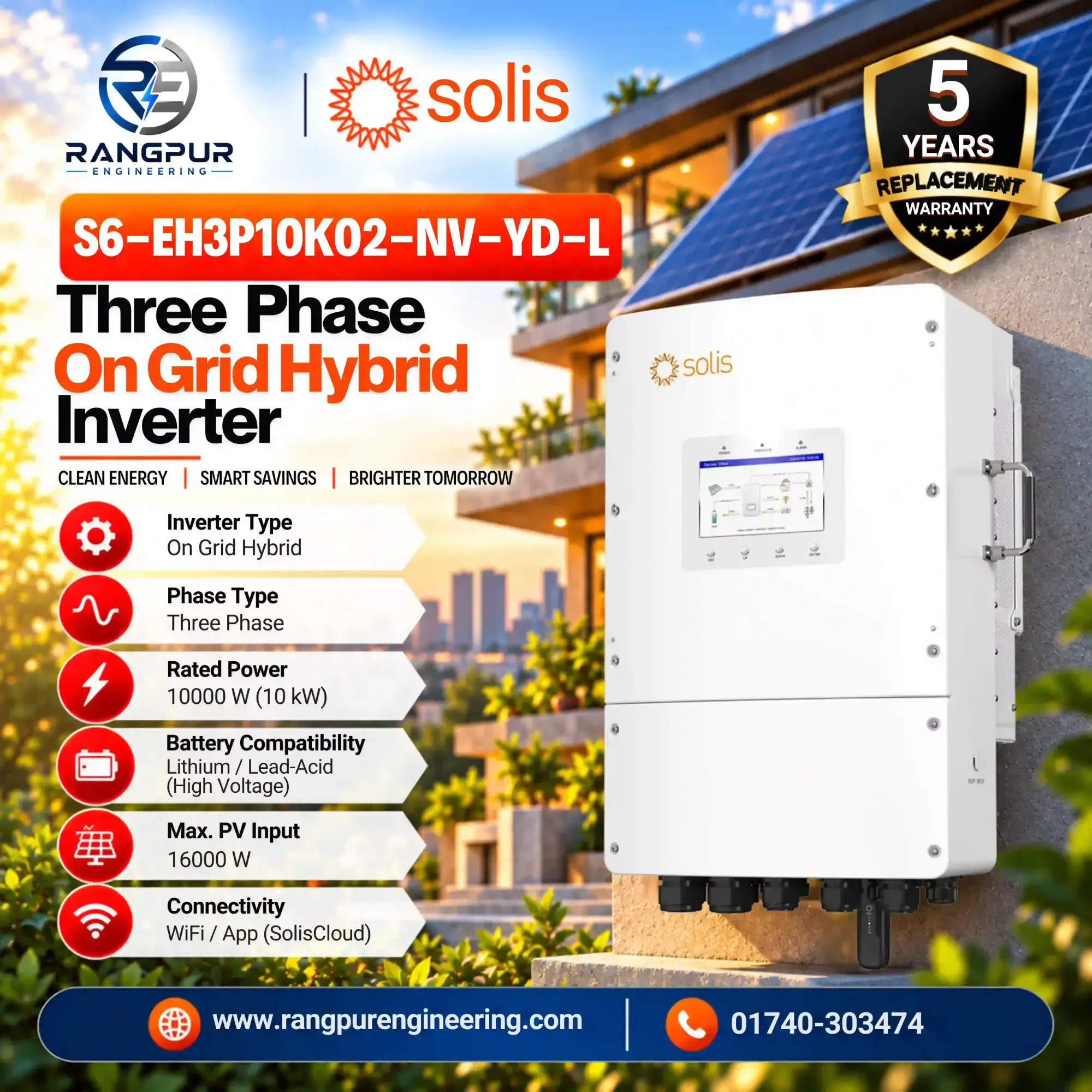

This three-phase hybrid inverter turns your home solar array into a steady 10 kW supply while managing battery storage and grid feed-in. Its white metal housing has a front status screen, bottom cable glands and a secure side latch for wall mounting. It suits large homes running solar panels, lithium or lead-acid batteries and generator backup on a three-phase supply.
ModelsS6-EH3P10K02-NV-YD-L
Input DC (PV side)
Recommended max. PV array size20 kW
Max. usable PV input power16 kW
Max. input voltage1000 V
Rated voltage550 V
Start-up voltage160 V
MPPT voltage range200 - 850 V
Max. input current20 A / 40 A
Max. current per DC input20 A
Max. short circuit current30 A / 50 A
MPPT number / Max. input strings number2 / 3
Battery
Battery typeLi-ion / Lead-acid
Battery voltage range40 - 60 V
Max. charge / discharge current220 A
Number of battery port / Number of BMS port2 / 1
Max. charge / discharge current of each port150 A
CommunicationCAN / RS485
Output AC (Grid side)
Rated output power10 kW
Max. apparent output power10 KVA
Rated grid voltage3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V
Rated grid frequency50 Hz / 60 Hz
Rated grid output current15.2 A / 14.4 A
Power factor> 0.99 (0.8 leading - 0.8 lagging)
THDi< 3%
Input AC (Grid side)
Max. input power15 kW
Input voltage range323 - 437 V / 340 - 460 V
Max. input current22.8 A / 21.7 A
Output AC (Back-up)
Rated output power10 kW
Max. apparent output power2 times of rated power, 10 s
Back-up switch time ①< 10 ms
Rated output voltage3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V
Rated frequency50 Hz / 60 Hz
Rated output current15.2 A / 14.4 A
Max. AC passthrough current50 A
THDv (@linear load)< 3%
Input AC (Generator side)
Max. input power10 kW
Rated input current15.2 A / 14.4 A
Rated input voltage3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V
Rated input frequency50 Hz / 60 Hz
Efficiency
Max. efficiency97.5%
EU efficiency97.0%
BAT charged by PV / AC max. efficiency95.0% / 94.4%
Battery discharged efficiency94.5%
Protection
Surge protectionDC Type II / AC Type II (Optional)
Output over current protectionYes
Insulation resistance monitoringYes
Residual current detectionYes
Integrated PV switchYes
DC reverse-polarity protectionYes
Protection class / Over voltage categoryI / II (PV and BAT), III (MAINS and BACKUP and GEN)
Integrated AFCI 2.0Optional
Anti-islanding protectionYes
General Data
Max. power per phase50% rated power
Dimensions (W × H × D)430 × 660 × 305 mm
Weight42 kg
Inverter topologyNon-isolated (PV), Isolated (Battery)
Self-consumption< 30 W
Operating temperature range-25 ~ +60°C
Relative humidity0 - 100%
Ingress protectionIP66
Noise emission (typical)< 65 dB(A)
Cooling conceptIntelligent fan-cooling
Max. operation altitude4000 m
Grid connection standardEN 50549-1/-10, VDE 4105&VDE 0124, NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, SriLanka, EN 50438L, Vietnam, MEA, PEA, CEI 0-21
Safety / EMC standardIEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Features
PV connectionMC4 Quick connection plug
Battery connectionScrew terminal
AC connectionScrew terminal
Display7.0" LCD display & Bluetooth + APP
Communication interfaceStandard: WIFI+LAN+Bluetooth, CAN-BMS, CAN-Parallel×2, RS485-Meter, RS485, DRM, DI, DO×4; Optional: 2G/3G/4G
