25.6V 200Ah LiFePO4 Deep Cycle Battery 5.12kWh 6000 Cycles
Sale

25.6V 200Ah LiFePO4 Deep Cycle Battery 5.12kWh 6000 Cycles

৳86,400৳108,000Save ৳21,600
In stock

Key features

  • Brand: LVTOPSUN
  • Model: LVTS-256200-E
  • Battery Type: Lithium Iron Phosphate (LiFePO₄)
  • Nominal Voltage: 25.6V
  • Rated Capacity: 200Ah
  • Nominal Energy: 5.12 kWh
  • Operating Temperature: -20°C to +60°C
  • Cycle Life: Up to 6,000 cycles under specified test conditions
  • Warranty: 6 Years
  • Application: Solar Energy Storage, Home Backup Power, Telecom Systems, and Off-Grid Applications
  • 100% genuineManufacturer warranty
  • Nationwide deliveryCash on delivery available
  • Expert supportSizing & installation help
Need a bulk quote or advice?Call our hotline 01740-303474

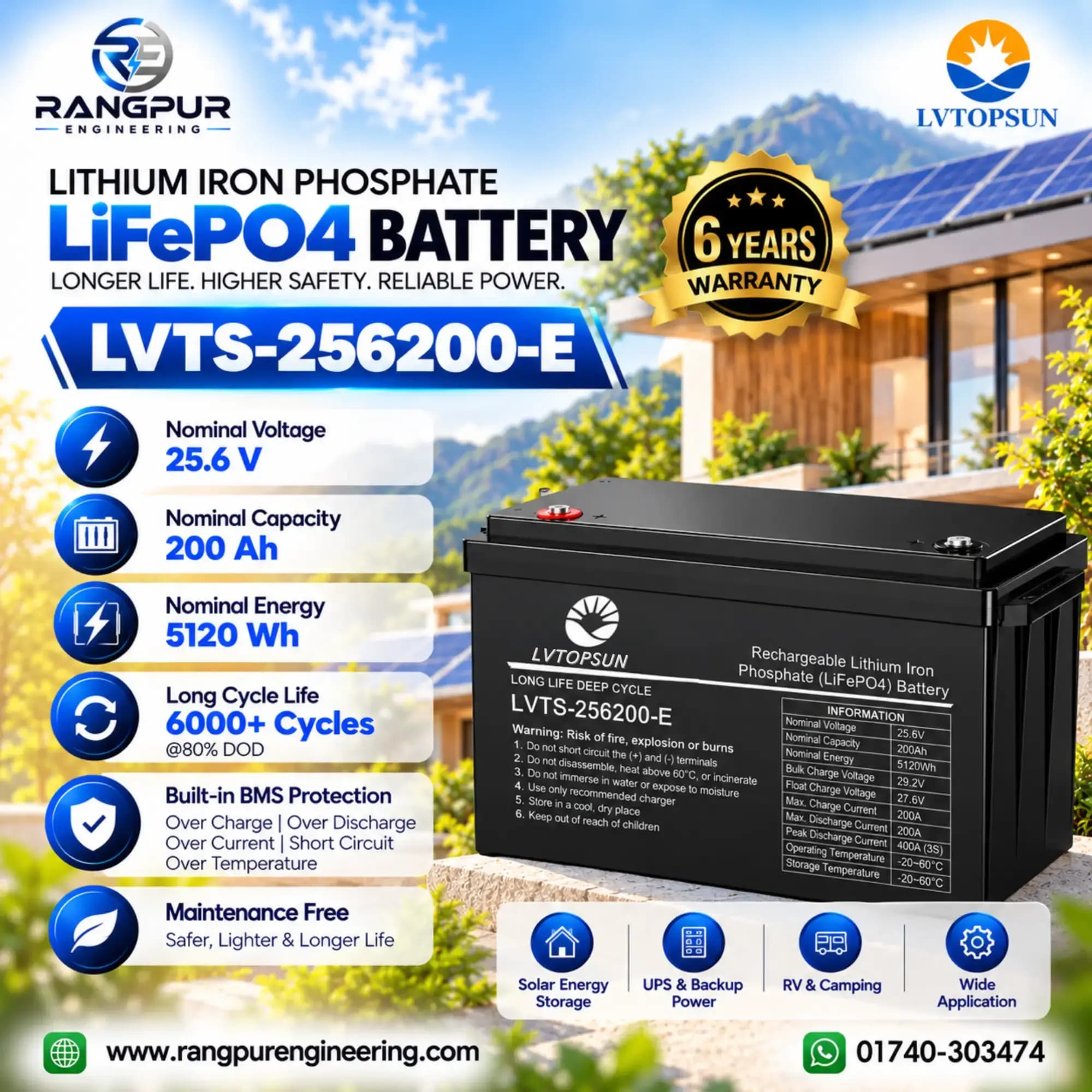

Stores 5.12 kWh of solar energy to keep home backup, telecom and off-grid systems running through outages. The sealed black case has top-mounted terminals, built-in BMS protection and maintenance-free operation. Suits homeowners, installers and remote sites that need low-voltage storage with up to 6,000 cycles.
ModelLVTS-256200-E
Performance
Nominal Ratings25.6 V,200 Ah, 5.12 kWh
Bulk Charge Voltage28 V
Float Charge Voltage27.6 V
Low Voltage25.6 V
Cutoff Voltage23.2 V
Charge Current100 A
Discharge Current200 A
Short Circuit Current≈2000 A
General Specification
Dimension (WxDxH mm)580X430X230 MM
Weight (Kg)51 kg
Working Temperature(-20°C~60°C)
Operating/Storage≤ 95%RH
Max Operating Altitude≤2000m
IP RatingIP54
Cell TechnologyLiFePO4, Lithium lron Phosphate
Cycle life6000 Cycles @ 80% DOD/25°C/0.5C，60% EOL
ScalabilityMax 2 batteries in series Max 4 batteries in parallel
Warranty6 years
Standard Compliance (more available upon request)
CertificatesCE, UN38.3
Ordering and Deliverable Part
Product ordering partLVTS-1256200 Battery
