16kWh 51.5V 314Ah LiFePO4 Battery 8000 Cycle Life
Sale

16kWh 51.5V 314Ah LiFePO4 Battery 8000 Cycle Life

৳256,000৳320,000Save ৳64,000
In stock

Key features

  • Brand: LVTOPSUN
  • Model: LVTS-512314-G3
  • Battery Type: Lithium Iron Phosphate (LiFePO₄)
  • Nominal Voltage: 51.2V
  • Rated Capacity: 314Ah
  • Nominal Energy: 16 kWh (16076.8Wh)
  • Operating Temperature: -20°C to +60°C
  • Cycle Life: Up to 6,000 cycles under specified test conditions
  • Warranty: 8 Years
  • Application: Solar Energy Storage, Home Backup Power, Telecom Systems, and Off-Grid Applications
  • 100% genuineManufacturer warranty
  • Nationwide deliveryCash on delivery available
  • Expert supportSizing & installation help
Need a bulk quote or advice?Call our hotline 01740-303474

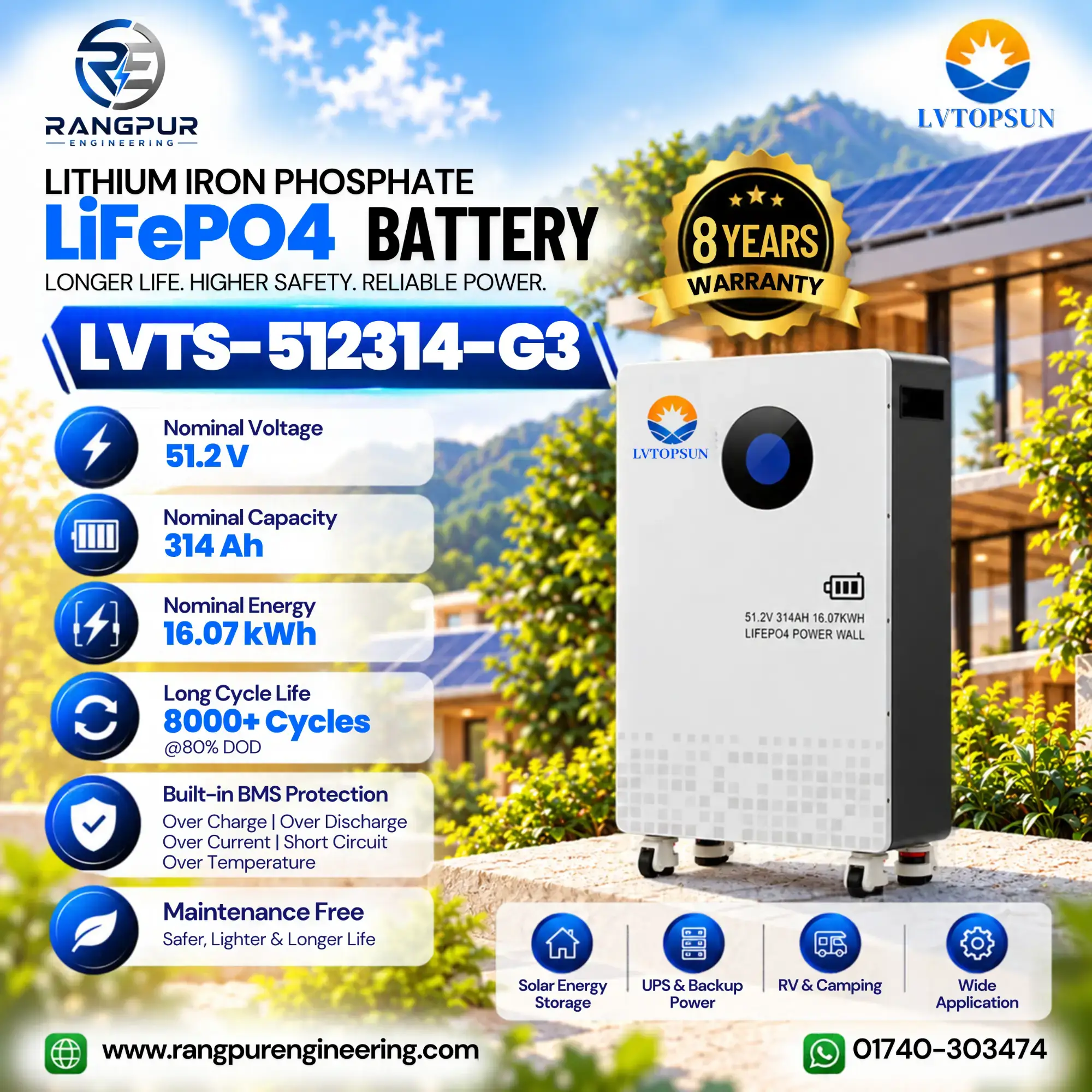

Store solar energy and keep essential loads running with this 16 kWh lithium iron phosphate battery. The white floor-standing cabinet sits on four caster wheels and carries a front label listing 51.2V, 314Ah and 16.07kWh, with built-in battery management protection. A practical choice for home backup, off-grid setups and telecom equipment.
ModelLVTS-512314-G3
Performance
Nominal Voltage51.2 Vdc
Nominal Capacity314 Ah
Battery Energy51.2 V,314 Ah, 16.076 kWh
Charge Voltage55.68~56.16 Vdc
Discharge Voltage45.6~56.16 Vdc
Maximum Charge Current150 A
Maximum Discharge Current200 A
Maximum Charge Power8038.4 W
Maximum Discharge Power16076.8 W
Short Circuit Current540 A
Communication
DisplayLED indicator+ LCD Display
CommunicationRS232, RS485, CAN
General Specification
Dimension (WxDxH mm)866x450x230 mm
Weight (Kg)119 kg
InstallationFloor Mount
Working TemperatureCharge 0°C~45°C Discharge-20°C~45°C
Storage TemperatureShort Term(within 1 month) -10°C~45°C
LongTerm(within 1 year)0°C~35°C
Operating/Storage≤ 95%RH
Max Operating Altitude≤2000m
IP RatingIP20
Cell TechnologyLiFePO4, Lithium lron Phosphate
Cycle life8000 Cycles @ 90% DOD/25°C/0.5C，60% EOL
Warranty8 years
Standard Compliance (more available upon request)
CertificatesCE, UN38.3
Ordering and Deliverable Part
Product ordering partLVTS-512314-G3 Battery (cable/wall mount included)
