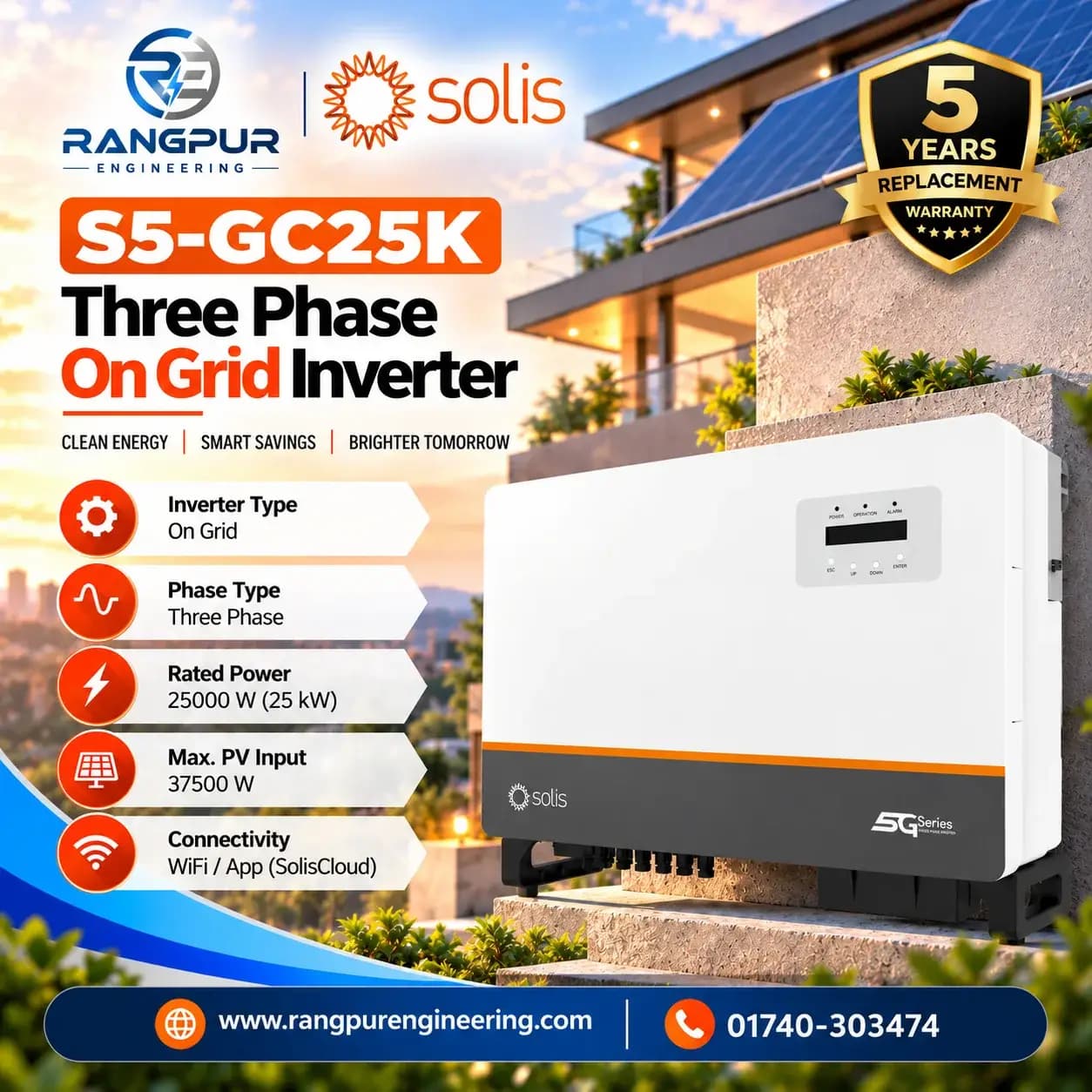

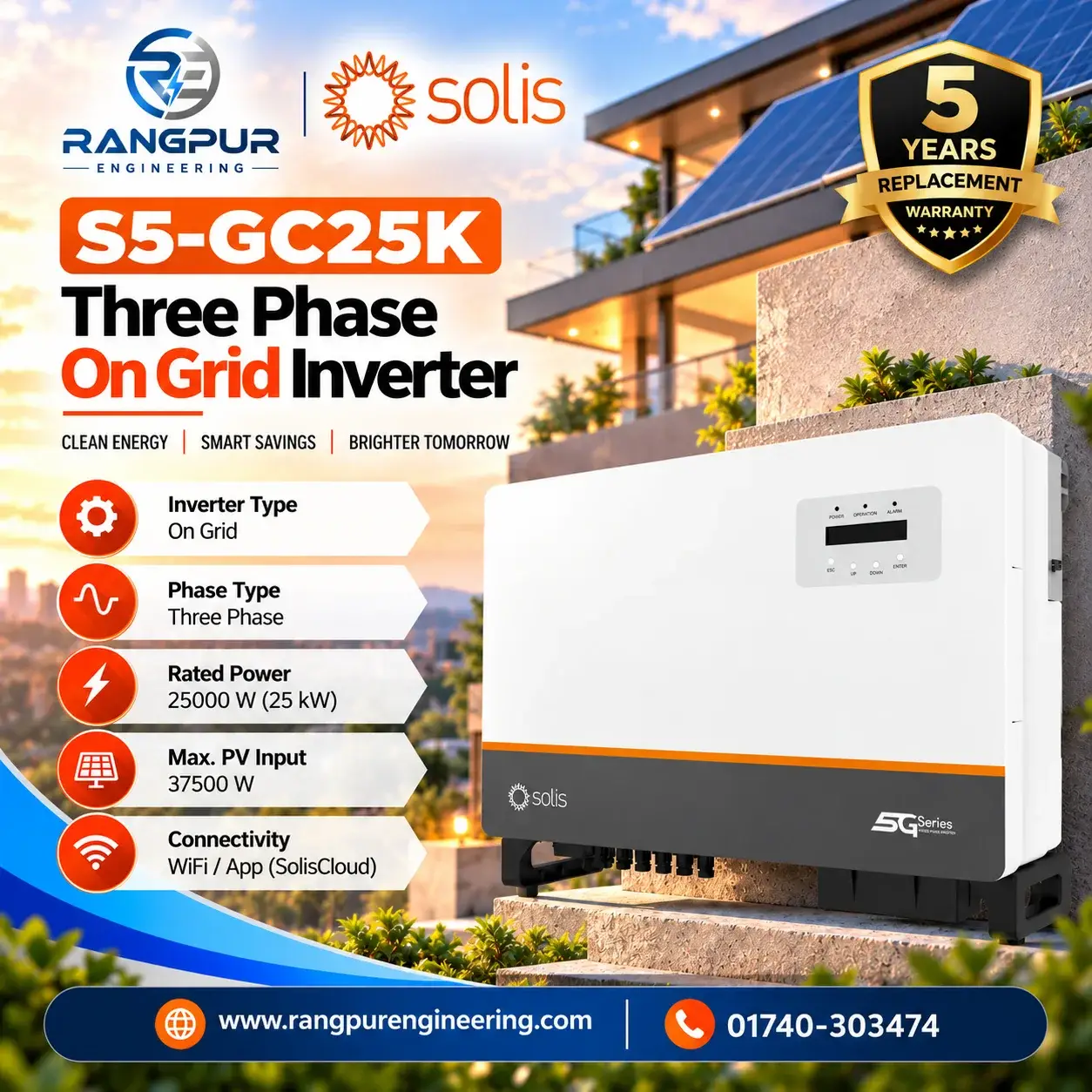

25 KW Three Phase On Grid Inverter with Wi-Fi App Monitoring
Sale

25 KW Three Phase On Grid Inverter with Wi-Fi App Monitoring

৳208,250৳245,000Save ৳36,750
In stock

Key features

  • Brand : Solis
  • Model : S5-GR25K
  • 25 kW rated power
  • 37,500 W maximum PV input
  • Three phase on grid inverter
  • Wi-Fi app monitoring
  • 5 years replacement warranty
  • 100% genuineManufacturer warranty
  • Nationwide deliveryCash on delivery available
  • Expert supportSizing & installation help
Need a bulk quote or advice?Call our hotline 01740-303474
Convert solar energy into three-phase grid power with a high-capacity 25 kW inverter designed for daily renewable generation. It offers flexible 3/4 MPPT configuration, quiet operation, and Wi-Fi app monitoring for simple system checks. Ideal for commercial rooftops and larger residential installations that need reliable on-grid output.
ModelsS5-GC25K
Input DC
Recommended max. PV power37.5 kW
Max. input voltage1100 V
Rated voltage600 V
Start-up voltage180 V
MPPT voltage range200 - 1000 V
Max. input current32 A / 32 A / 32 A
Max. short circuit current40 A / 40 A / 40 A
MPPT number / Max. input strings number3 / 6
Output AC
Rated output power25 kW
Max. apparent output power27.5 kVA
Max. output power27.5 kW
Rated grid voltage3/N/PE, 220 V / 380 V; 230 V / 400 V
Rated grid frequency50 Hz / 60 Hz
Rated grid output current38.0 A / 36.1 A
Max. output current41.8 A
Power factor> 0.99 (0.8 leading - 0.8 lagging)
THDi< 3%
Efficiency
Max. efficiency98.5%
EU efficiency98.1%
Protection
DC reverse-polarity protectionYes
Short circuit protectionYes
Output over current protectionYes
Surge protectionDC Type II / AC Type II
Grid monitoringYes
Anti-islanding protectionYes
Temperature protectionYes
Strings monitoringYes
I/V Curve scanningYes
Multi peak scanYes
Integrated AFCI 2.0Optional
Integrated PID recoveryOptional
Integrated DC switchYes
General Data
Dimensions (W × H × D)647 × 629 × 252 mm
Weight38.2 kg
TopologyTransformerless
Self-consumption (night)< 1 W
Operating ambient temperature range-25 ~ +60°C
Relative humidity0 - 100%
Ingress protectionIP66
Noise emission (typical)≤ 60 dB(A)
Cooling conceptIntelligent fan-cooling
Max. operation altitude4000 m
Grid connection standardG99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530
Safety / EMC standardIEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Features
DC connectionMC4 connector
AC connectionOT terminal
DisplayLCD
CommunicationRS485, Optional: Wi-Fi, GPRS
